Sun Gear

Sun Gear

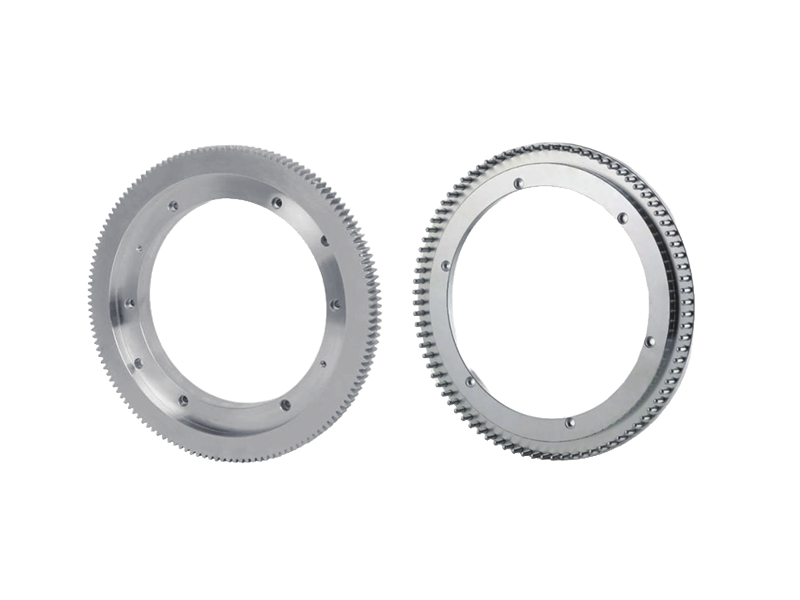

The sun gear is a key transmission gear for driving the planetary carrier system. Together with the carrier wheels, it forms a precision planetary gear train and provides the motion source for the required workpiece trajectory. Its meshing accuracy directly affects transmission stability, noise, machining consistency and service life.
联系我们
  • Detailed Description

The sun gear is a key transmission gear for driving the planetary carrier system. Together with the carrier wheels, it forms a precision planetary gear train and provides the motion source for the required workpiece trajectory. Its meshing accuracy directly affects transmission stability, noise, machining consistency and service life.

Product Features

  • Product Core: A key transmission gear for driving the planetary carrier system.
  • Core Value: Together with the carrier wheels, it forms a precision planetary gear train and provides the motion source for the specified workpiece trajectory. Its meshing accuracy directly affects transmission smoothness, noise level and service life.
  • Precision Characteristics: Premium alloy steel, such as chromium-molybdenum steel, is processed by precision hobbing, heat treatment, such as quenching or carburizing, and precision grinding to ensure high tooth-surface hardness, excellent wear resistance, accurate tooth geometry and minimal meshing clearance.
  • Customization Advantages: Customized gear rings and sun gears can be supplied with module, tooth count, pressure angle, profile-shift coefficient, internal or external tooth configuration and mounting interfaces matched to the customer's equipment.

Product Specifications

Unit: mm

Specification Outer Diameter Inner Diameter Thickness Number of Teeth Module
4B Sun Gear Φ128 Φ99 22 60 M2
6B Sun Gear Φ127 Φ99 22 55 DP12
6B Sun Gear Φ132 Φ99 22 64 M2
9B Sun Gear Φ195 Φ140 25 90 DP12
9B Sun Gear Φ196 Φ140 25 96 M2
13B Sun Gear Φ334 Φ240 30 156 DP12
15B Sun Gear Φ306 Φ220 30 100 M3
16B Sun Gear Φ326 Φ255 40 152 DP12
16B Sun Gear Φ339 Φ250 39 110 M3
20B Sun Gear Φ402 Φ310 35 132 M3
22B Sun Gear Φ435 Φ310 35 143 M3
24B Sun Gear Φ594 Φ320 30 196 M3
