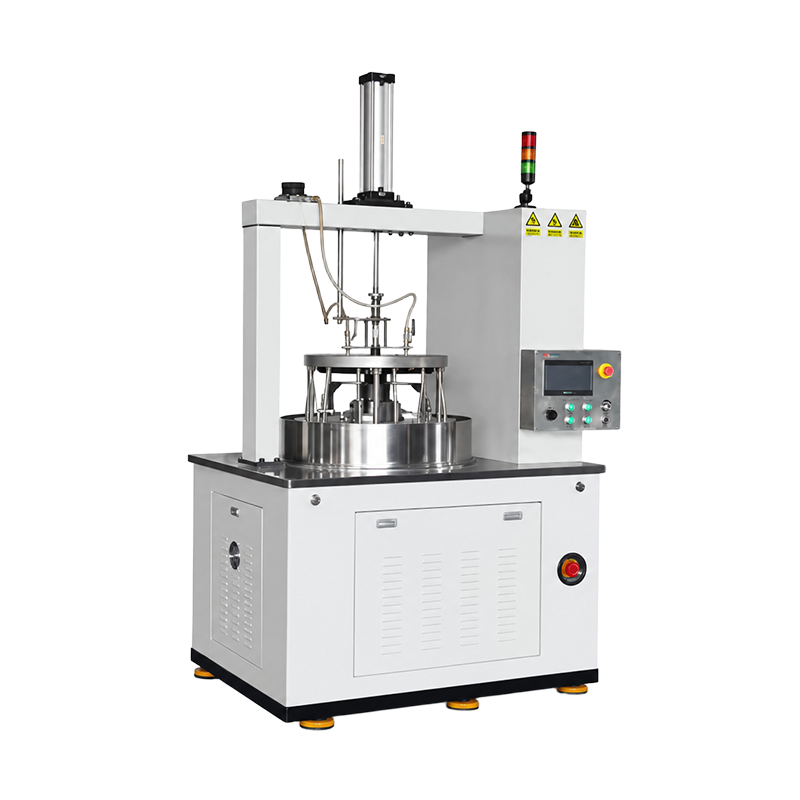

| Double-Side Polishing Machine 9B-5L/P-3M Performance Parameter Table | ||||
|---|---|---|---|---|
| No. | Category | Item | Parameter | Unit |
| 1 | Machine Parameters | Overall Dimensions | 1450X1050X2450 Including Cylinder | mm |
| 2 | Upper and Lower Plate Size | Polishing: ф640×ф232×t30 Lapping: ф638×ф234×t30 |
mm | |
| 3 | Maximum Polishing Diameter | φ150 | mm | |
| 4 | Workpiece Carrier Parameter | Z108/PCD228.6 | mm | |
| 5 | Workpiece Carrier Quantity | 5 | pcs | |
| 6 | Inner and Outer Gear Ring Parameter | DP12 | mm | |
| 7 | Processing Thickness Range | 0.1～60 | mm | |
| 8 | Power Supply and Total Power | AC380/6.5 | V/KW | |
| 9 | Machine Weight | Approx. 1800 | Kg | |
| 10 | Drive Method | Three Worm Gear Reducers | ||
| 11 | Precision Parameters | Main Bearing Method | High-Precision Four-Point Ball Bearing | |
| 12 | Upper and Lower Plate Speed Ratio 1:3 | 1～45/1～15 Variable-Frequency Speed Control | rpm | |
| 13 | Inner Gear Ring Speed | 1～27 Variable-Frequency Speed Control | rpm | |
| 14 | Outer Gear Ring Speed | 1～22 Variable-Frequency Speed Control | rpm | |
| 15 | Lower Plate Runout | ≤0.015 | mm | |
| 16 | Upper and Lower Plate Flatness | ≤0.01 | mm | |
| 17 | Outer Gear Ring Tooth-Tip Runout | ≤0.15 | mm | |
| 18 | Inner Gear Ring Tooth-Tip Runout | ≤0.08 | mm | |
| 19 | External Parameters | Pressure Control | ±2 | Kg |
| 20 | Water Tank Volume | 12 | L | |
| 21 | Water Pump Power | 120 | W | |
| 22 | Polishing Slurry System Flow | 50 | L/min | |
| 23 | Water Inlet Interface | Ф12 | mm | |
| 24 | Air Source Pressure | 0.6-0.7 | Mpa | |
| 25 | Air Source Interface | Ф8 | mm | |
| 26 | External Parameters | Pressure Detection | High-Precision Weighing Sensor | pcs |
| Double-Side Polishing Machine 9B-5L/P-3M Configuration List | |||||
|---|---|---|---|---|---|
| No. | Category | Name | Brand / Specification | Quantity | Unit |
| 1 | Main Machine | Reducer Motor | Worm Gear Reducer / Taiwan Chengda, Hangzhou Hengxing | 3 | pcs |
| 2 | Shaft Bearing | NSK | 12 | pcs | |
| 3 | Protective Cover | Stainless Steel Sheet Metal | 1 | unit | |
| 4 | Pneumatic System | Japan CKD/SMC | 3 | sets | |
| 5 | Machine Leveling Pad | Shock-Absorbing Adjustable Leveling Pad | 4 | pcs | |
| 6 | Transmission Gear | High-Frequency Helical Gear | 4 | sets | |
| 7 | Electric Control Cabinet | Inverter | Delta/Inovance | 3 | pcs |
| 8 | PLC | Delta/Inovance | 1 | pcs | |
| 9 | Analog Expansion Module | Delta/Inovance | 1 | pcs | |
| 10 | Touch Screen | Weinview/MCGS | 1 | pcs | |
| 11 | AC Contactor | LS | 2 | pcs | |
| 12 | Electric Proportional Valve | SMC | 1 | pcs | |
| 13 | Solenoid Valve / Air Circuit | Airtac | 5 | pcs | |
| 14 | Peripheral Equipment | Water Pump | Jili Machinery ADB-50E | 1 | unit |
| 15 | Water Tank | Stainless Steel Single-Layer Conical-Bottom Water Tank | 1 | set | |
| 16 | Other Accessories | Hex Key Wrench | 1～10mm / Extended | 1 | set |
| 17 | Manual | Machine Manual | 1 | book | |
| 18 | Packing List | 1 | copy | ||
| 19 | Certificate of Conformity | 1 | copy | ||
