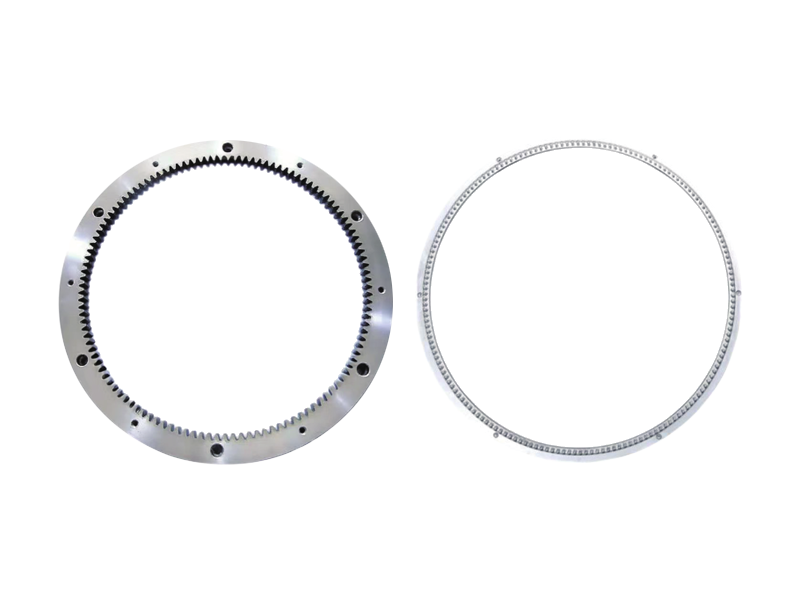

Internal Gear Ring

Internal Gear Ring

The internal gear ring is a key transmission gear for driving the planetary carrier system. Together with the carrier wheels, it forms a precision planetary gear train that drives the required workpiece motion path. Its meshing accuracy directly affects smooth transmission, operating noise, machining stability and service life.
联系我们
  • Detailed Description

The internal gear ring is a key transmission gear for driving the planetary carrier system. Together with the carrier wheels, it forms a precision planetary gear train that drives the required workpiece motion path. Its meshing accuracy directly affects smooth transmission, operating noise, machining stability and service life.

Product Features

  • Product Core: A key transmission gear for driving the planetary carrier system.
  • Core Value: Together with the carrier wheels, it forms a precision planetary gear train and provides the motion source for the specified workpiece trajectory. Its meshing accuracy directly affects transmission smoothness, noise level and service life.
  • Precision Characteristics: Premium alloy steel, such as chromium-molybdenum steel, is processed by precision hobbing, heat treatment, such as quenching or carburizing, and precision grinding to ensure high tooth-surface hardness, excellent wear resistance, accurate tooth geometry and minimal meshing clearance.
  • Customization Advantages: Customized gear rings and sun gears can be supplied with module, tooth count, pressure angle, profile-shift coefficient, internal or external tooth configuration and mounting interfaces matched to the customer's equipment.

Product Specifications

Unit: mm

Specification Outer Diameter Inner Diameter Thickness Number of Teeth Module
4B Internal Gear Ring Φ400 Φ320 20 162 M2
6B Internal Gear Ring Φ480 Φ398 22 190 DP12
6B Internal Gear Ring Φ480 Φ404 22 204 M2
9B Internal Gear Ring Φ730 Φ644.8 22 305 DP12
9B Internal Gear Ring Φ730 Φ644 22 324 M2
13B Internal Gear Ring Φ1030 Φ948.3 30 450 DP12
15B Internal Gear Ring Φ1160 Φ1062 40 356 M3
16B Internal Gear Ring Φ1280 Φ1164.4 45 552 DP12
16B Internal Gear Ring Φ1294 Φ1179 40 395 M3
20B Internal Gear Ring Φ1530 Φ1410 50 472 M3
22B Internal Gear Ring Φ1638 Φ1518 50 508 M3
24B Internal Gear Ring Φ1740 Φ1620 50 542 M3
